OK42 Half Covered Design

There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

Material Features
PA6 With %30 Fiber Glass
Speed
7 m/sec
Operating Temperature
-30 °C -+ 130°C

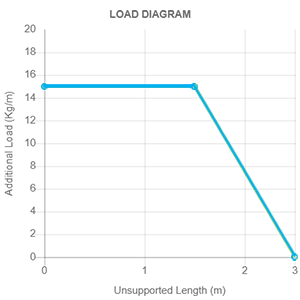

Bending Radius 75 100 150 200
H (mm) 62 62 62 62
X (mm) 208 258 358 458
Y (mm) 236 314 471 628





OK42 Y SERIE

Half Covered Design , Plastic Medium Serie

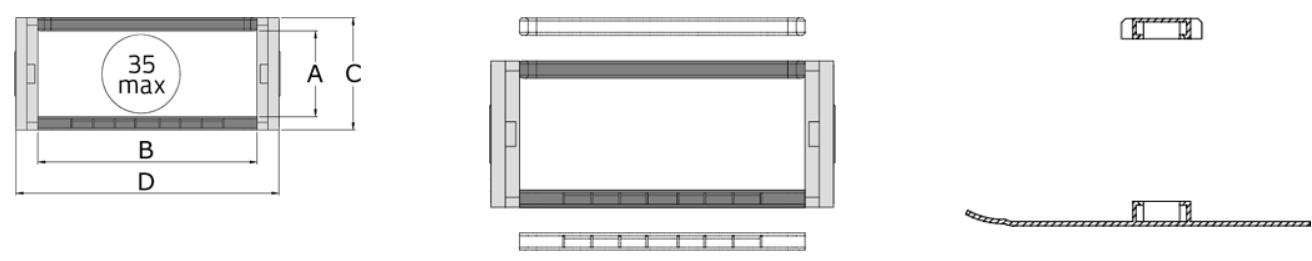

OK42 Y A B C D R W
MODEL Inner Height (mm) Inner Lenght (mm) Outter Height (mm) Outter Lenght (mm) Bending Radius Weight Kg/Mt
OK42 Y 050 R ... 42 50 58 77 100, 150, 200 1,738
OK42 Y 080 R ... 42 80 58 107 100, 150, 200 1,93
OK42 Y 100 R ... 42 100 58 127 100, 150, 200 2,058
OK42 Y 125 R ... 42 125 58 152 100, 150, 200 2,022

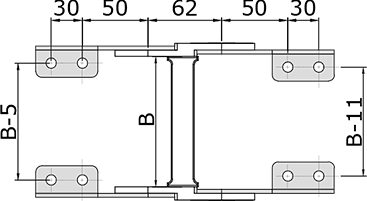

Plastic End Bracket Assembly Dimensions

OK42 Serie Plastic Medium Serie Plastic End Bracket Assembly Dimensions Details















Plastic End Bracket Assembly

OK42 Serie Plastic Medium Serie Plastic End Bracket Assembly Details

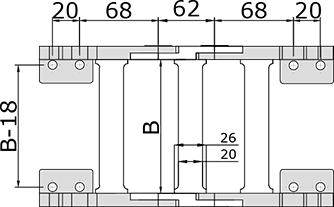

Steel End Bracket Assembly Dimensions

OK42 Serie Plastic Medium Serie Steel End Bracket Assembly Dimensions Details


















Steel end Bracket Assembly

OK42 Serie Plastic Medium Serie Steel End Bracket Assembly Details

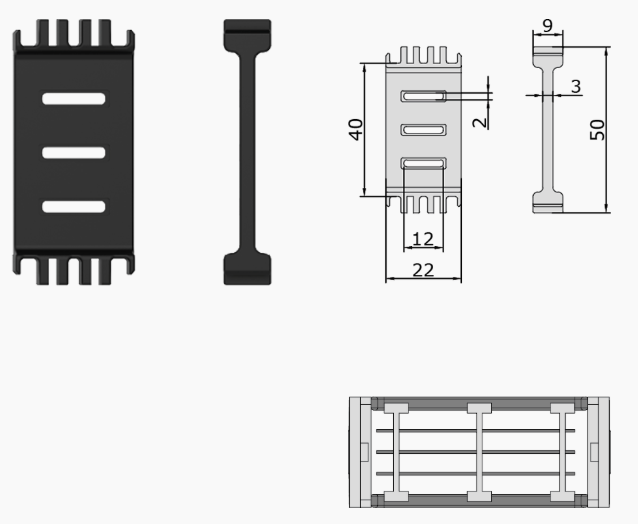

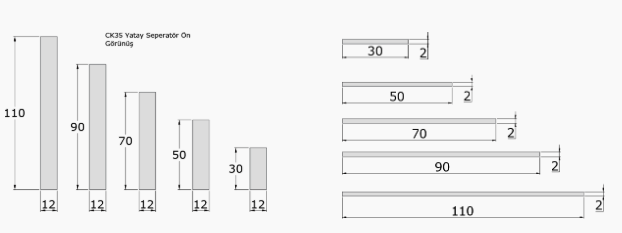

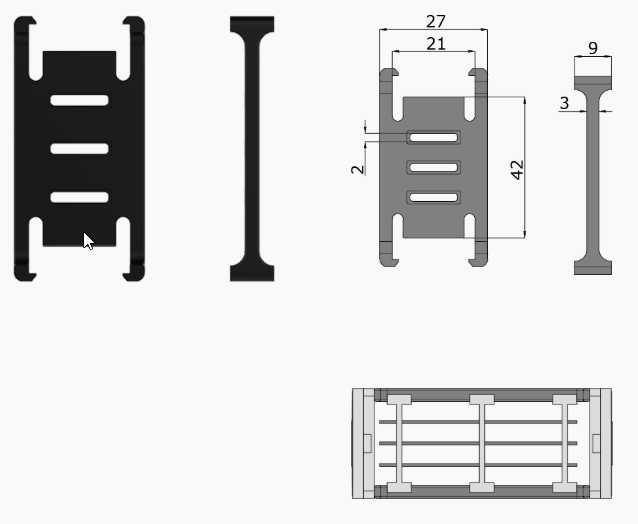

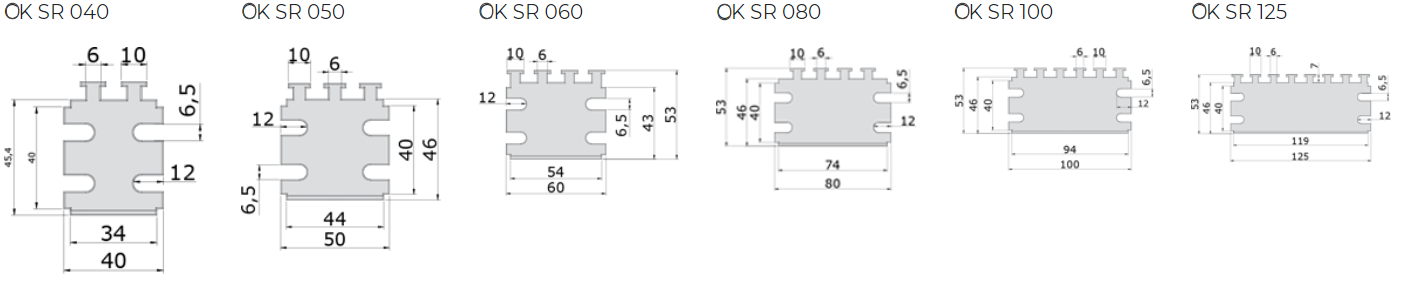

Seperator Dimensions

OK42 Serie Plastic Medium Serie Seperatorleri Details

Open Series Plastic Vertical OK42 SP





Closed Series Plastic Vertical OK42 KSP





Plastic Horizontal OK42 KSP



Strain Relief

OK42 Serie Plastic Medium Serie Strain Relief Details

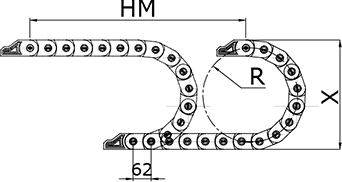

  • L : Calculation of the Chain Length     HM : Movement Distance    X : Radius Distance    Y : Radius Distance    H : Pitch
