Seri : OK42 A OK42 K OK42 Y

OK42 Openable From Inner Side

There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

Material Features
PA6 With %30 Fiber Glass
Speed
7 m/sec
Operating Temperature
-30 °C -+ 130°C

Bending Radius 75 100 150 200
H (mm) 62 62 62 62
X (mm) 208 258 358 458
Y (mm) 236 314 471 628





OK42 A SERIE

Openable From Inner Side , Plastic Medium Serie

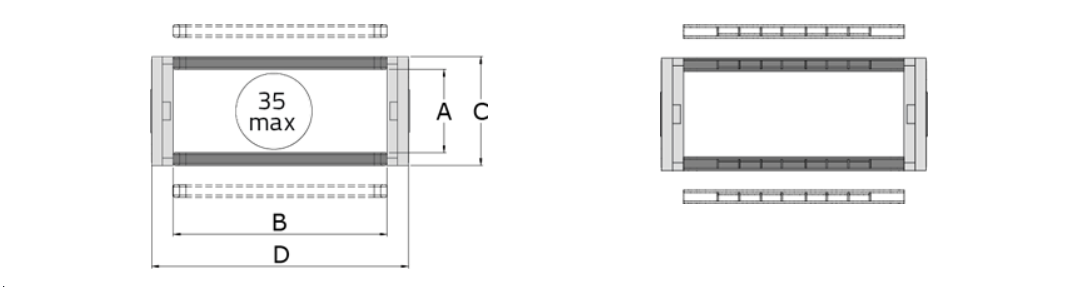

OK42 A A B C D R W
MODEL Inner Height (mm) Inner Lenght (mm) Outter Height (mm) Outter Lenght (mm) Bending Radius Weight Kg/Mt
OK42 A 040 R ... 42 40 58 67 75, 100, 150, 200 1,578
OK42 A 050 R ... 42 50 58 77 75, 100, 150, 200 1,61
OK42 A 060 R ... 42 60 58 87 75, 100, 150, 200 1,642
OK42 A 080 R ... 42 80 58 107 75, 100, 150, 200 1,706
OK42 A 100 R ... 42 100 58 127 75, 100, 150, 200 1,77
OK42 A 120 R ... 42 120 58 147 75, 100, 150, 200 1,834
OK42 A 125 R ... 42 125 58 152 75, 100, 150, 200 1,866
OK42 A 175 R ... 42 175 58 202 75, 100, 150, 200 2,026





Plastic End Bracket Assembly Dimensions

OK42 Serie Plastic Medium Serie Plastic End Bracket Assembly Dimensions Details















Plastic End Bracket Assembly

OK42 Serie Plastic Medium Serie Plastic End Bracket Assembly Details











Steel End Bracket Assembly Dimensions

OK42 Serie Plastic Medium Serie Steel End Bracket Assembly Dimensions Details


















Steel end Bracket Assembly

OK42 Serie Plastic Medium Serie Steel End Bracket Assembly Details











Seperator Dimensions

OK42 Serie Plastic Medium Serie Seperatorleri Details

Open Series Plastic Vertical OK42 SP





Closed Series Plastic Vertical OK42 KSP





Plastic Horizontal OK42 KSP



Strain Relief

OK42 Serie Plastic Medium Serie Strain Relief Details














  • L : Calculation of the Chain Length     HM :  Movement Distance    X : Mounting Height    Y : Radius Distance     H : Pitch

I                  L = HM / 2 + Y                   I                   X = R X 2 + C                    I                   Y = R / π                  I
