OS22 Openable From Inner Side
There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

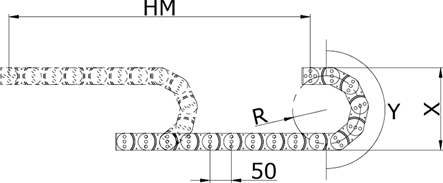

| Bending Radius | 50 | 150 |
| H (mm) | 50 | 50 |
| X (mm) | 140 | 340 |
| Y (mm) | 157 | 471 |
OS22 A SERIE
Openable From Inner Side , Steel Serie
| OS22 A | A | B | C | D | R | W |
| MODEL | Inner Height (mm) | Inner Lenght (mm) | Outter Height (mm) | Outter Lenght (mm) | Bending Radius | Weight Kg/Mt |
|---|---|---|---|---|---|---|
| OS22 A | 22 | 50 - 400 | 40 | 65 - 415 | 50, 150 | - |
