OK20 Half Covered Design
There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

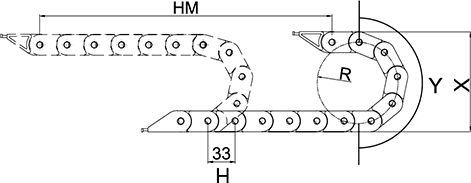

| Bending Radius | 40 |
| H (mm) | 33 |
| X (mm) | 106 |
| Y (mm) | 126 |
OK20 Y SERIE
Half Covered Design , Plastic Lıght Serie

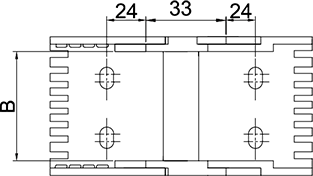

| OK15 F | A | B | C | D | R | W |
| MODEL | Inner Height (mm) | Inner Lenght (mm) | Outter Height (mm) | Outter Lenght (mm) | Bending Radius | Weight Kg/Mt |
|---|---|---|---|---|---|---|
| OK20 Y 025 R040 | 20 | 25 | 26 | 37 | 40 | 0,47 |
| OK20 Y 040 R040 | 20 | 40 | 26 | 52 | 40 | 0,543 |
| OK20 Y 050 R040 | 20 | 50 | 26 | 62 | 40 | 0,6 |
| OK20 Y 060 R040 | 20 | 60 | 26 | 72 | 40 | 0,634 |
