Seri : OK20 F OK20 Y

OK20 F Fixed Lath

There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

Material Features
PA6 With %30 Fiber Glass
Speed
9 m/sec
Operating Temperature
-30 °C -+ 130°C

Bending Radius 40
H (mm) 33
X (mm) 106
Y (mm) 126




OK20 F SERIE

Half Covered Design , Plastic Lıght Serie

OK20 F A B C D R W
MODEL Inner Height (mm) Inner Lenght (mm) Outter Height (mm) Outter Lenght (mm) Bending Radius Weight Kg/Mt
OK20 F 025 R040 20 025 26 37 40 0,425




Plastic End Bracket Assembly Dimensions

OK20 Serie Plastic Lıght Serie Plastic End Bracket Assembly Dimensions Details

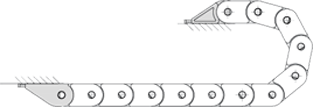

Plastic End Bracket Assembly

OK20 Serie Plastic Light Serie Plastic End Bracket Assembly Details

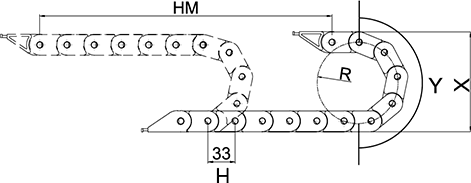

  • L : Kullanılacak Miktar     HM : Hareket Mesafesi     X : Montaj Yüksekliği    Y : Radüs Mesafesi     H : Hatve





I                  L = HM / 2 + Y                   I                   X = R X 2 + C                    I                   Y = R / π                  I

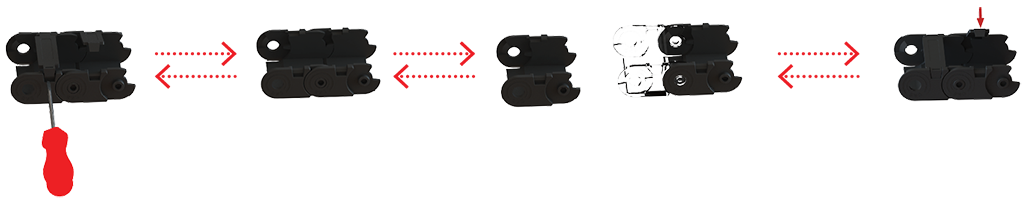

Installation-Disassembly Application
