CS110 Covered Design
There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

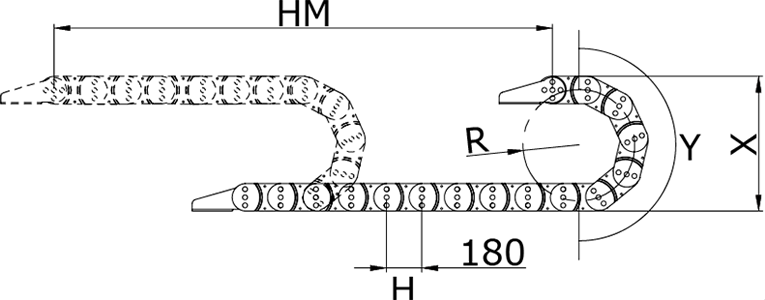

| Kıvrılma Yarıçapı | 250 | 300 | 350 | 400 | 500 | 600 | 800 | 1000 |
| H (mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| X (mm) | 645 | 745 | 845 | 945 | 1145 | 1345 | 1745 | 2145 |
| Y (mm) | 785 | 942 | 1099 | 1256 | 1570 | 1884 | 2512 | 3140 |
CS110 K SERİSİ
Kapalı Seri , Çelik Seri
| CS110 K | A | B | C | D | R | W |
| MODEL | İç Yükseklik (mm) | İç Genişlik (mm) | Dış Yükseklik (mm) | Dış Genişlik (mm) | Kıvrılma Yarıçapı | Ağırlık Kg/Mtt |
| CS110K | 110 | 200 - 1000 | 145 | 232 - 1032 | 250, 300, 350, 400, 500, 600, 800, 1000 | - |
