OK80 A Plastic Heavy Serie - Ortac Cable Carrier Systems

Seri : OK80 A

OK80 Openable From Inner Side

There are many cable carrier systems produced by Tacflex Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

Material Features
PA6 With %30 Fiber Glass

Speed
4 m/sec

Operating Temperature
-30 °C -+ 130°C

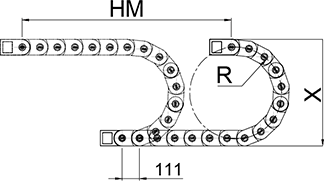

Kıvrılma Yarıçapı	150	200	250	300
H (mm)	111	111	111	111
X (mm)	402	502	602	702
Y (mm)	471	628	785	942

OK80 A SERIE

Openable From Inner Side , Plastic Heavy Serie

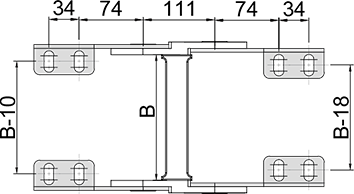

OK80 A	A	B	C	D	R	W
MODEL	Inner Height (mm)	Inner Lenght (mm)	Outter Height (mm)	Outter Lenght (mm)	Bending Radius	Weight Kg/Mt
OK80 A 080 R ...	80	80	102	112	150, 200, 250, 300	3,384
OK80 A 100 R ...	80	100	102	132	150, 200, 250, 300	3,492
OK80 A 120 R ...	80	120	102	152	150, 200, 250, 300	3,6
OK80 A 140 R ...	80	140	102	172	150, 200, 250, 300	3,69
OK80 A 160 R ...	80	160	102	192	150, 200, 250, 300	3,762
OK80 A 180 R ...	80	180	102	212	150, 200, 250, 300	3,834
OK80 A 200 R ...	80	200	102	232	150, 200, 250, 300	3,978
